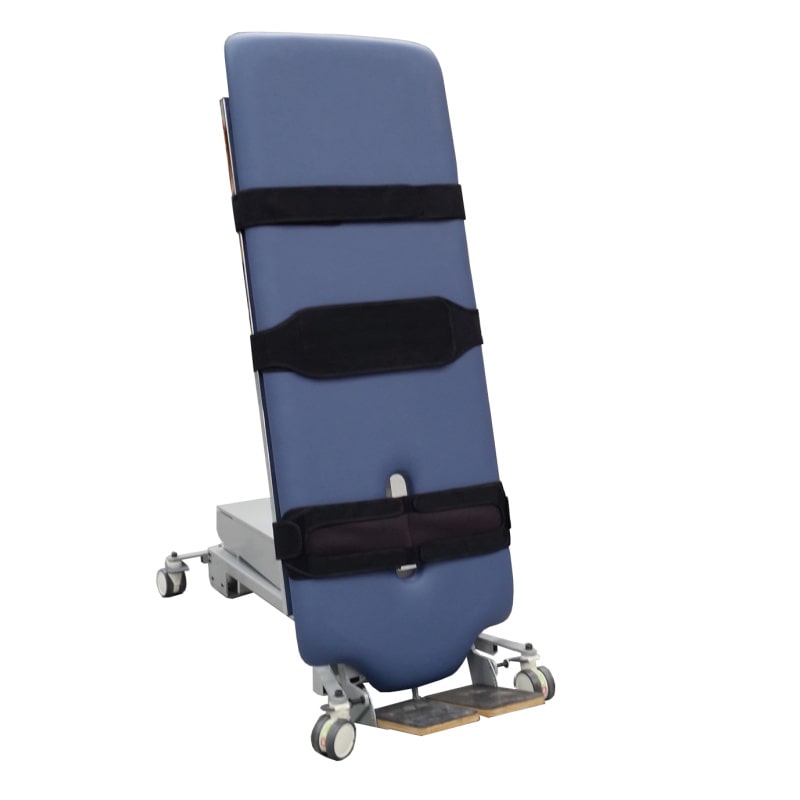

ABCO Dual Action Tilt Table

ABCO Dual Action Tilt Table

by ABCO Health Care
$6,420.00
Height Range
Tilt Capacity - Speed
Backrest

Notify me when back in stock

Best Price Guarantee

Find a better price? We will beat it

Risk Free Returns

Don't need it? Send it back

Forever Support Promise

We commit to you and your product, always

Therapeutic Tilt Tables are used in rehabilitation following trauma, in ICU's, for functional rehabilitation of handicapped or disabled patients and in cardiac assessments..



The new ABCO Dual Action Tilt Table is designed and manufactured in Australia with a 5 year warranty based on our popular Dual Action Tilt Table available since 1997.


By using a twin column lift we are able to achieve a more powerful lifting function without lengthwise movement during height adjustment. As a bonus, with fewer moving parts the table structure has fewer places where hands or limbs could be crushed.

It was developed to permit easy transfers to the tilt table independently, from a wheel chair, bed or with a hoist [there is 155mm clearance below the frame for hoist clearance]. Carers can adjust the working height to the best level for them [up to 750 or 990mm depending on the height range chosen] using the hand control.

The long cut-out in the leg area allows for individual strapping of the legs as required. A set of three patient straps is supplied as standard.

The table top tilts to 80deg and patients can safely walk on and off the table if appropriate taking advantage of the adjustable angle foot plate [ +/-30deg in 5deg steps]. Two angle indicators, one on either side of the table, are also a standard accessory.

Lifting capacity is 350+kg and tilting capacity is 200kg which can be optionally increased to 350+kg;

Standard configuration includes

  • Height range 520 - 750mm
  • Tilting capacity 200kg
  • Fast or slow tilting speed with 'soft-stops'
  • Hand control
  • Adjustable angle twin foot plate
  • Set of 3 patient straps
  • Tilt angle indicators on both sides of table
  • Battery back-up

There is no Australian GST payable on Tilt Tables.

Custom Options:

If there are any options you would like that are either listed below and not an option on the product page, or not listed at all, please contact us. We work directly with the manufacturer to get custom options including breathe holes, battery, and non-standard lengths and widths for an extra cost. Contact us via sales@primephysioessentials.com.au or 1300 990 239

Upholstery Colours:

Our standard vinyl upholstery is Studio brand medical grade heavy-duty vinyl fabric.
The exclusive formulation delivers a superior softness for comfort including excellent strength and wear characteristics.
Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils; light fast; fire retardant; sanitised; stain resistant.
Maintenance:

  • Recommended cleaning with chemically neutral soap and warm water, then wipe clean.
  • Do not dry-clean or use abrasive or solvent based products.

Height Range:

  • The standard height range is 520 - 770mm and more suitable for wheel chair transfer
  • The high range option is 570 - 970mm suitable for standing transfers from beds.

Tilt Capacity / Speed:

Choose the 350kg tilt function for fast tilting function [11sec] or heavier patients

Breathe Hole:

All our Breathe Holes come with an upholstered plug insert

Backrest:

Adding a backrest increases the range of uses possible for the Tilt Table.

Upholstery Width:

Choose a width that suits your requirements.

Product Code: TD100.07021.S0E00H0.005P1

Specifications:

ABCO Health Care has a policy of continuous improvement. Specifications and prices are subject to change without notice
Couch Dimensions Main Section 1750mm long
  Overall Length 1950mm
  Width 710mm
Upholstery Angle adjustment Tilt Twin Electric actuators
Upholstery Fabric Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
  Foam 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life.
  Colours Wedgewood. Other colours available on request
Frame Materials Heavy steel plate and tube
  Colour Light Grey
  Wheel System 125mm braked castors [155mm clearance for hoists]
Height adjustment Range 570 -  970mm [optionally 500 - 750mm]
  Lift mechanism Vertical lift with no lengthwise movement
  Lift operation Twin Linak brand European electric columns
  Control Hand control
Electrical Requirements   Medically approved to AS 3200 / EN60601 - 1
  Supply 230vAC °10%, 50hz max 3.0amp
  Operation 24vDC max 70VA
Battery back-up
Lifting Capacity   350kg Dynamic / 700kg Static
Tilting capacity   200kg
Weight   90kg
Shipping Dimensions   197 x 82 x 60cm / 95kg. Shrinkwrapped on a wooden pallet
ARTG No   123573
Warranty   5 years, parts only
