Description
One cutout, exactly where body-section procedures need it - meet the LynX Cardiology Table (M1) with Body Cutouts
Don't need access at two points, just one, in the body section? This is the simpler, more affordable cutout configuration.
A single cutout sits in the body upholstery section, giving procedure access without paying for a second opening you won't use.

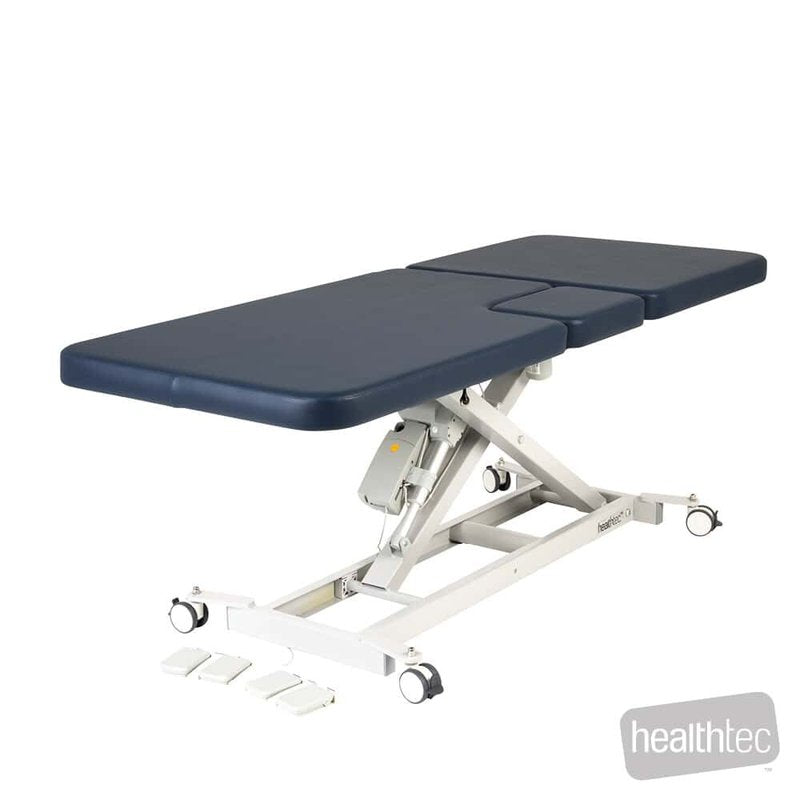

A fill section converts the table back to a full flat examination surface when the cutout isn't needed.
Healthtec LynX Cardiology Table (M1) built to hold up in daily practice use

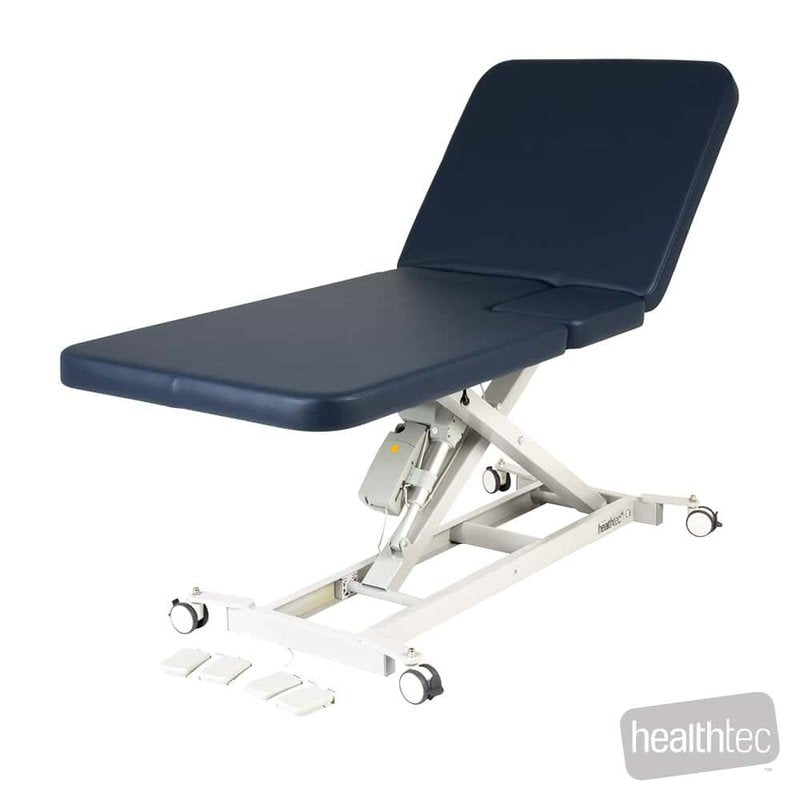

The electric backrest adjusts from flat to +70°, giving a comfortable seated or semi-reclined position without manual cranking.
A stainless steel paper towel roll holder is available, protecting upholstery from ultrasound gel and cutting clean-up time between patients.
The X-Frame lift action minimises pinch and crush points during height adjustment.
What you actually need to know about the Healthtec LynX Cardiology Table (M1) before ordering
Is a single body cutout actually enough, or do we need two?
If your procedures only need access at one point on the body, this covers that at a lower price. If you need access at two points, whether both in the backrest, or split between backrest and body, Healthtec's other cardiology table configurations cover those setups instead.
Do we need the 760mm width instead of standard 710mm?
The wider table gives a larger cutout for procedures needing greater patient access, standard 710mm covers most investigative work without the upgrade.
Product Info

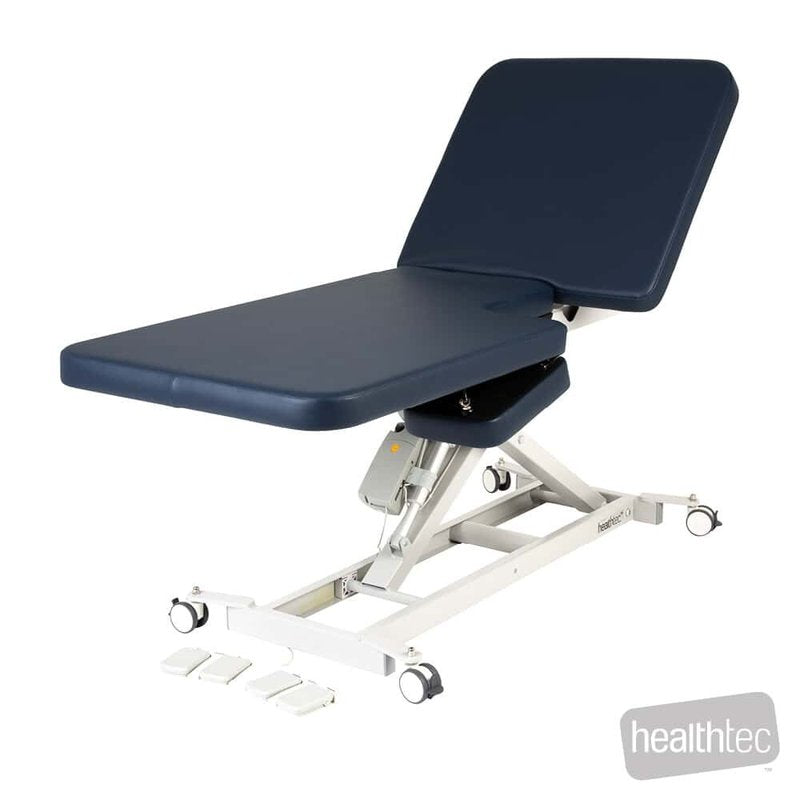

Drop Down Fill Section
This LynX Cardiology Table (M1) is standard with an electrically operated Backrest that can be adjusted from flat to +70º enabling a comfortable seated or semi-reclined position for the patient and fill section to allow the table to be a full examination table when required.
Electric Height Adjustment with Foot Switch
This model features a cutout in the body upholstery section. Other cutout positions are available, including Dual Backrest Section Cutouts, Dual Backrest & Body Section Cutouts or a single cutout in the Backrest Section.
X-Frame Lift Action Minimises Pinch and Crush Points
Your LynX Cardiology Table (M1) can be ordered in a colour of your choice with accessory and upgrade options to further enhance the patient and user experience. All Healthtec tables and chairs are manufactured using quality Dunlop upholstery foam. Consider upgrading to 75mm Comfort Foam for extra patient support when placing your order.
Heavy Duty Individually Lockable Castors
Wider cutouts are featured on the optional 760mm wide table to provide greater patient access during investigative procedures.
Durable Powder Coated Rust Resistant Steel Frame
Central Locking Castors are also offered as an upgrade for situations where regular table movement and patient transfers are required.
High Quality Anti-microbial Vinyl and CFC Free Foam
A stainless steel Paper Towel Roll Holder accessory option is available for this table to protect the upholstery from Ultrasound Gel and reduce clean up time between patients.
Available in 710mm or 760mm Widths Enabling for a Larger Cut Out
Being Australian designed and manufactured, this Healthtec table has a 10 Year Structural Warranty on the base and frame. Your table quality and performance is further enhanced with best in class 5 Year Electrical and 3 Year Upholstery warranty.
Australian Designed and Manufactured
Get set up with confidence
Add to Cart. Live chat available if you want to confirm cutout position, width, or castor upgrade before you order.
Specifications
| Category | Detail |
|---|---|
| Weight | 80 kg |
| Dimensions | 205 × 85 × 65 cm |
| Maximum Working Load | 400kg (Stationary) |
| Maximum Lifting Capacity | 250kg (Moving) |
| Minimum Working Height | 450mm |
| Maximum Working Height | 950mm |

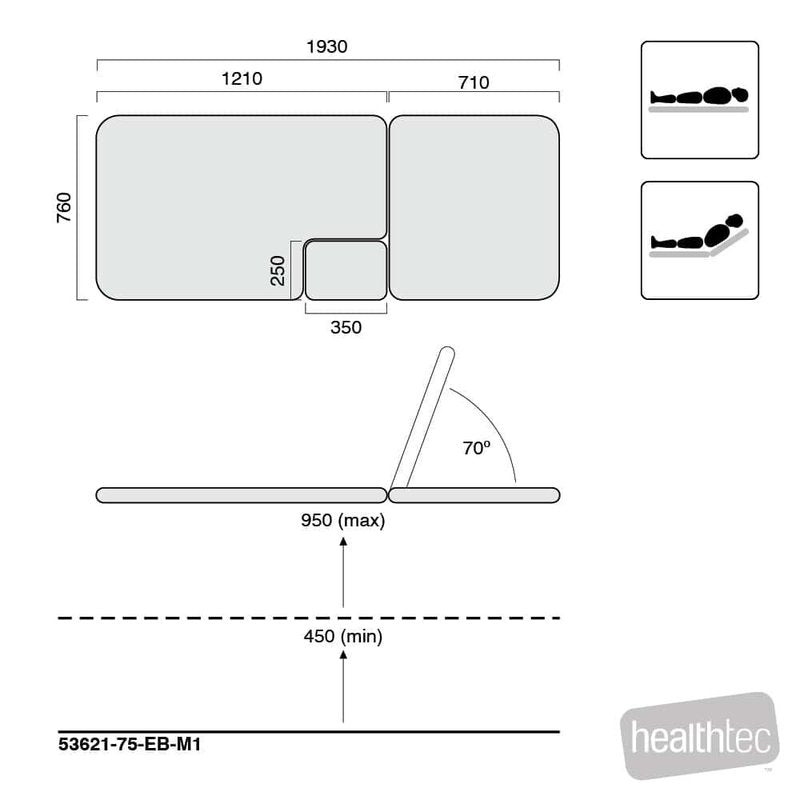

| Table Width | 710mm (Available in 760mm Width for Larger Cut-Out – See Diagrams for Dimensions) |
| Table Length | 1840mm |
| Cushioning | 50mm Foam |
| Controller | Foot Switch |
| Base/Castor | LynX X-Frame with Castors |
| BackRest | Electronically Adjustable +70º |

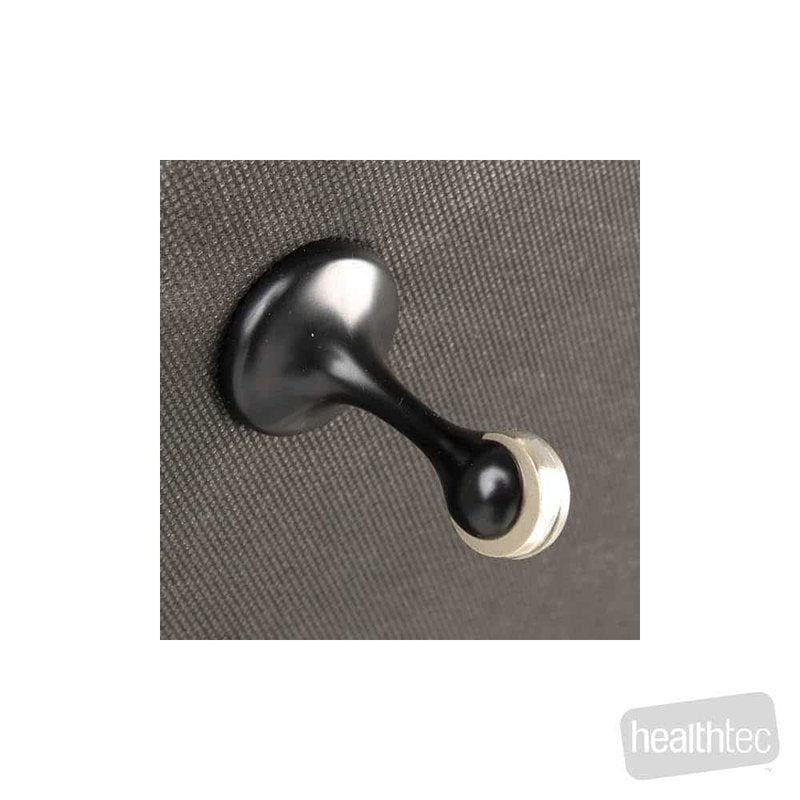

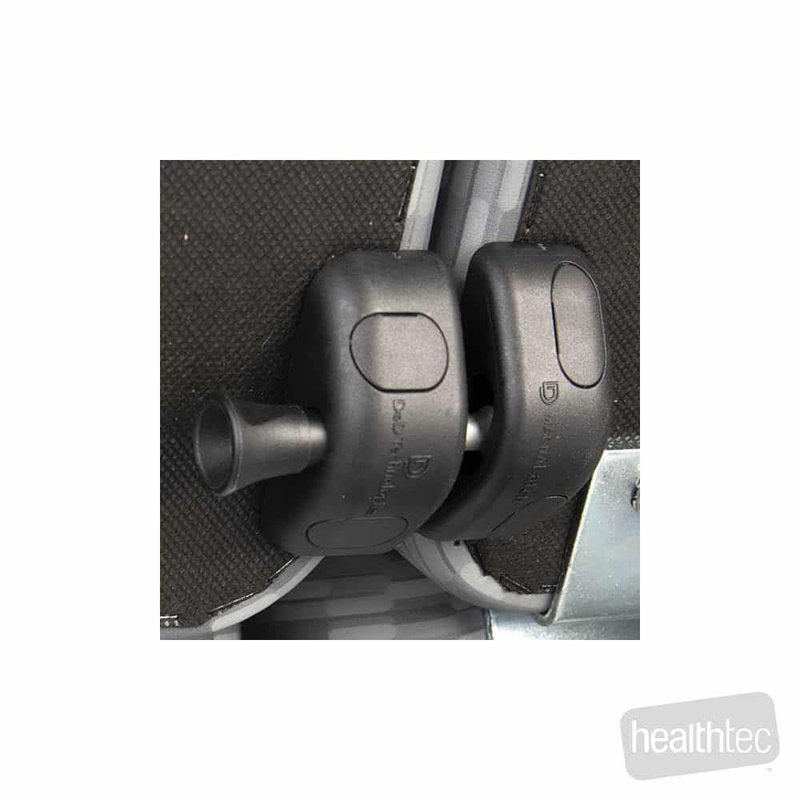

| Cutout | Manually Opens and Held with Magnetic Catches |
The specifications put forth in this website were in effect at the time of publication. However, due to Healthtec's policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. All dimensions shown are nominal only.
