Description

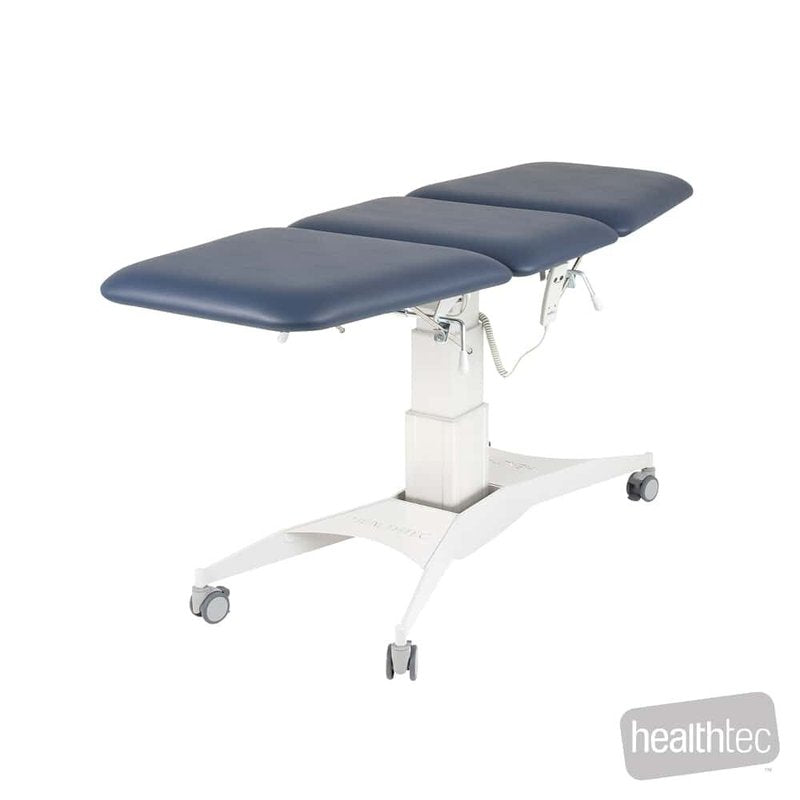

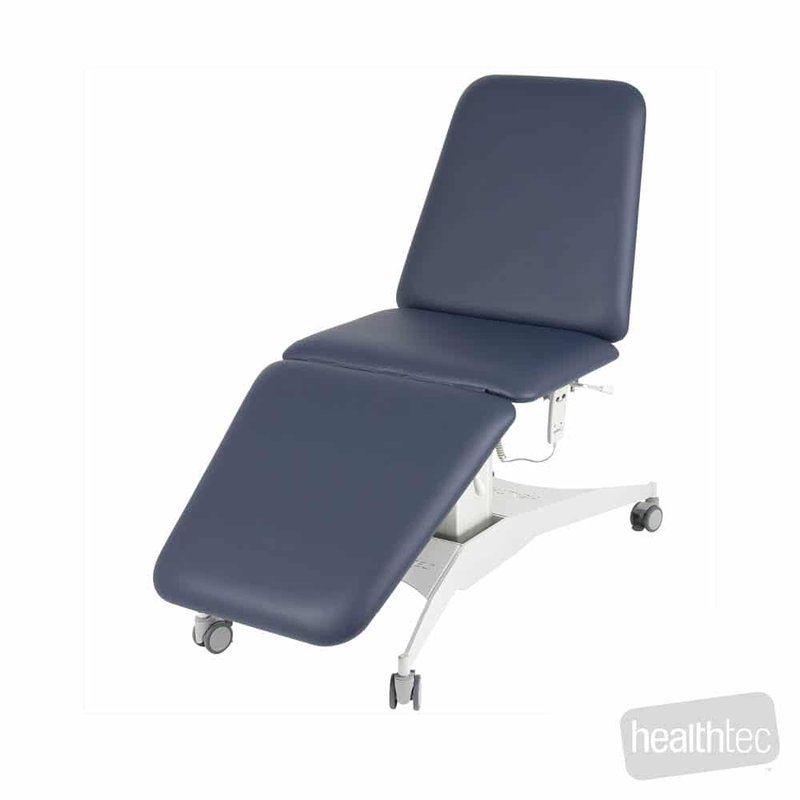

A wider tilt range and zero crush points, not just minimised ones - meet the Healthtec Pinnacle Universal Examination Table
Need more than a backrest recline for left or right patient positioning in a tight space? The Pinnacle tilts further than a standard universal table.
Each end section manually raises to +80° and lowers to -35°, giving a wider positioning range for space-constrained examination rooms.
The single column lift eliminates total pinch and crush points, so nothing can get trapped under the table during adjustment.
Healthtec Pinnacle Universal Examination Table built to hold up in daily practice use
The new generation column design suits multiple disciplines, not just one type of examination or procedure.
Medical-grade total lock castors swivel a full 360°, staying durable and easy to maintain across daily use.
Anti-microbial vinyl and CFC-free foam meet hygiene standards across every examination type it's used for.
What you actually need to know about the Healthtec Pinnacle Universal Examination Table before ordering
Is this actually better than the LynX Universal, or just a different base?
It tilts further, -35° to +80° versus the LynX Universal's flat to +70°, and the single column lift eliminates total pinch and crush points rather than just minimising them. The trade-off is a lower 300kg stationary load rating compared to the LynX's 400kg, so weigh that against your typical patient load.
What's the warranty and support process if something goes wrong?
10 years structural on base and frame, 5 years electrical, 3 years upholstery. Parts only, documented by Healthtec.
Product Info
Single Column Motorised Lift with No Pinch Points
This three section Pinnacle Universal Examination Table is designed to help with patient examination and procedures where space is an issue. The column lift eliminates total pinch and crush points so nothing can get trapped under the table. Each end section can be manually raised +80° and lowered -35° for left and right patient examination and procedures.
New Generation Design for Multiple Disciplines
Medical-grade total lock castor wheels swivel 360 degree are durable and easy to maintain.

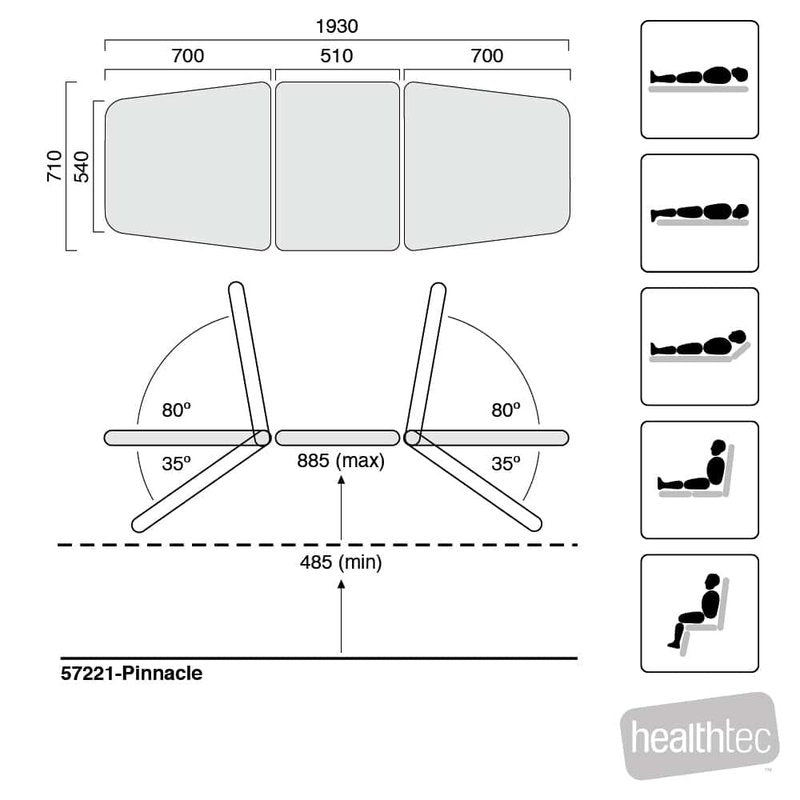

Suitable for Universal Left and Right Examinations -35° to +80°
Your Pinnacle Universal Examination Table can be ordered in a colour of your choice with accessory options to further enhance the patient and user experience. All Healthtec tables are manufactured using quality Dunlop upholstery foam.
Powder Coated Steel Frame
A three section Universal Examination Table is also available with the LynX base.
High Quality Anti-microbial Vinyl and CFC Free Foam
Australian Designed and Manufactured
Get set up with confidence
Add to Cart. Live chat available if you want to confirm width or colour before you order.
Specifications
| Category | Detail |
|---|---|
| Weight | 80 kg |
| Dimensions | 2050 × 850 × 650 cm |
| Maximum Working Load | 300kg (Stationary) |
| Maximum Lifting Capacity | 250kg (Moving) |
| Minimum Working Height | 485mm |
| Maximum Working Height | 885mm |
| Table Width | 710mm Standard (Optional 610mm & 660mm) |
| Table Length | 1930mm |
| Cushioning | 50mm Foam |
| Controller | Timotion Hand Switch |
| Base/Castor | Pinnacle with Castors |
| Backrest | Manually Adjustable -35º to +80º |
The specifications put forth in this website were in effect at the time of publication. However, due to Healthtec's policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. All dimensions shown are nominal only.
